1.2 Physical Interfaces

Get known of the physical interfaces on the EZR24 router.

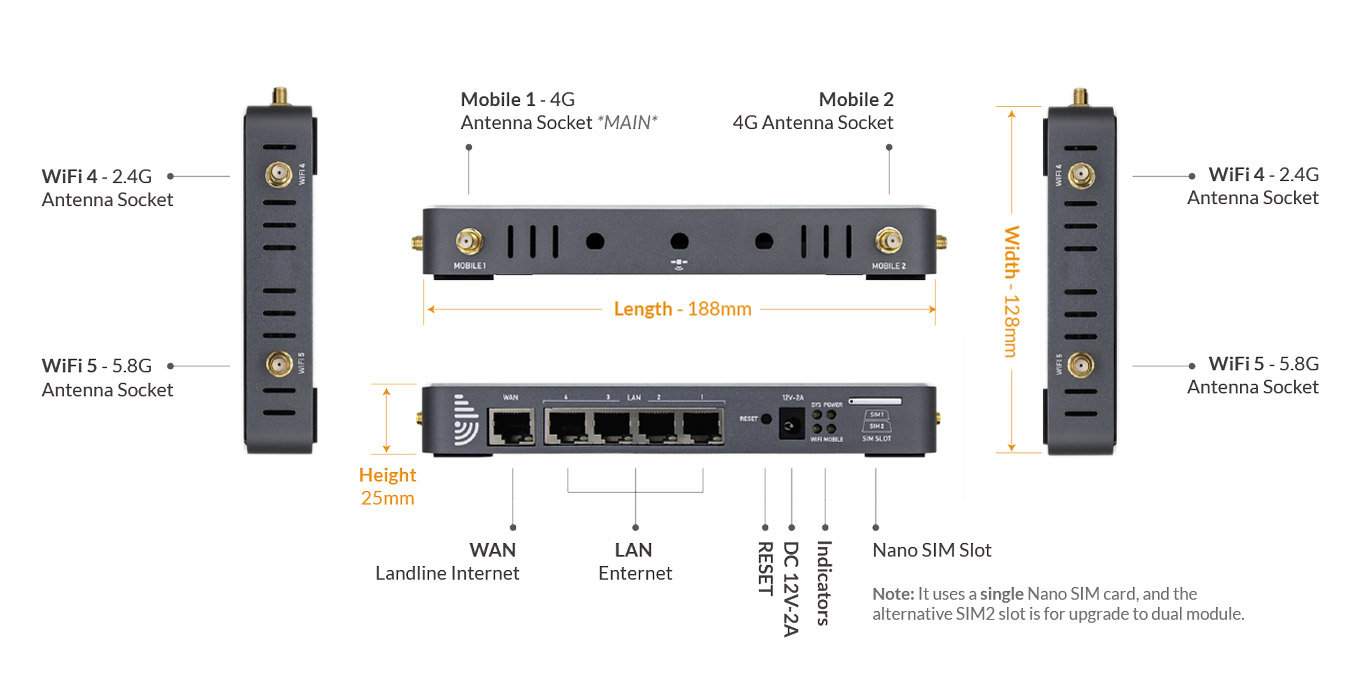

EZR24 router has 6x antenna sockets and 4xLAN & 1xWAN ports.

The antenna sockets are SMA-female connectors. 4G antenna sockets are marked "Mobile 1~2" on the upsides. Wi-Fi sockets are marked "WiFi4" and "WiFi5" on the left & right sides.
