2.5 Indicators

Instructions to the status and descriptions on each indicator of the EZR24 router.

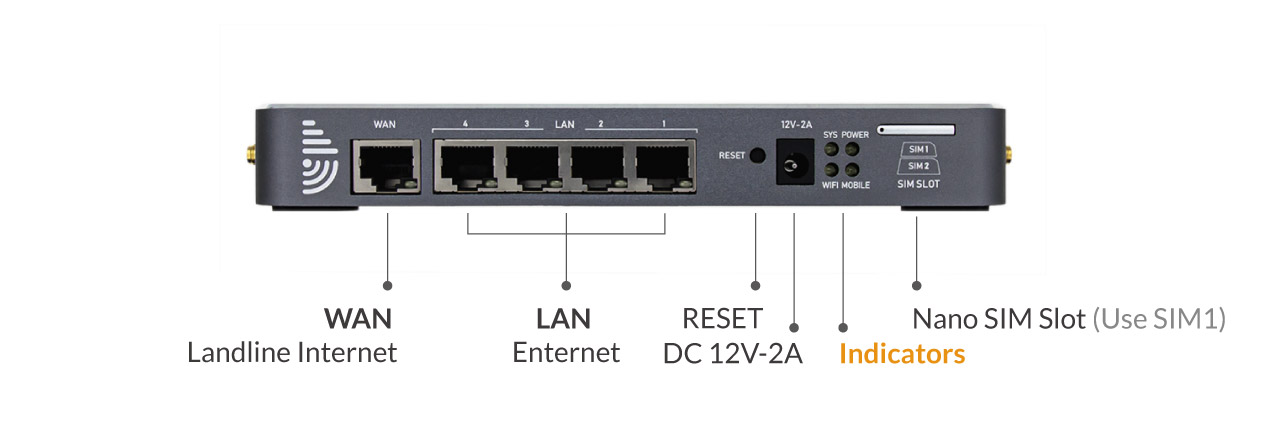

There are four indicators on the EZR24-012 router. From up to down, the left sides are system & Wi-Fi, and the right is Power and Mobile. Below are the indicator descriptions.

IndicatorStatusDescription

System

Green

This light indicates that the router is receiving power. If it's lit solid green, then the router has booted successfully.

Flash

The router system is booting up. The system indicator flashes while resetting or flashing the firmware.

Off

No light at all indicates that the router is not receiving power. Check the PoE socket connect to the motherboard and check the PoE adapter. You might need to test an alternate power socket if the router doesn't power on.

WiFi

Green

This light indicates that the modem is sending a Wi-Fi signal. If the light is on the green, you can see and connect to the Wi-Fi network.

Flash

If you are connected to the Wi-Fi hotspot, it will flash green to indicate data going to and from the router. If the router is connected to another Wi-Fi hotspot (Wi-Fi relay), it will also flash because it has the data flow.

Off

If it's off, your router is no longer sending a Wi-Fi signal. You can log in to the router admin and turn on the Wi-Fi master hotspot.

Power

On

After connected to the DC power adapter, it will turns on.

Mobile

Green

It shows the mobile connection status. Stay on green color means connected to the mobile network.
